SoundMAGIC In-Ear PL20


Overview

  • Model No.: PL20
  • Unit: 9 mm Neodymium Magnet
  • Sensitivity: 96±3 dB at 1 KHz/mW
  • Frequency range: 20~22000 Hz

Features

  • Compatible with iPod/iPhone and other portable MP3 player devices.
  • Comprehensive soundstage with precise positioning.
  • Natural and pure tone reproduction.
  • True response results in more details.
  • Noise isolation near -20dB

Accessory

  • PU pouch
  • L Silicone ear tips
  • Double flange silicone ear tips
  • Warranty Card
  • Wire-wrap board
  • Cable clamp

Technical Specifications

Frequency range 20~22000 Hz
DC Resistance 12±10% Ohm
Sensitivity 96±3 dB at 1 KHz/mW

Colors

  • black, white

Sizes

  • Cable length: 1.2 M
  • Connection: 3.5 mm
  • Weight: 10 g

Packaging

  • Carton: 100 x 100 x 60mm

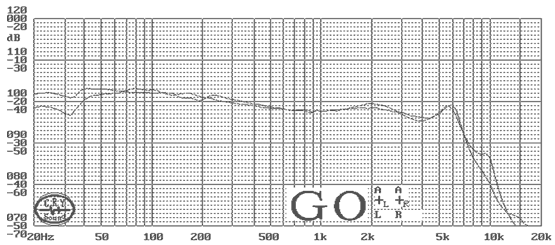

Frequency Response
