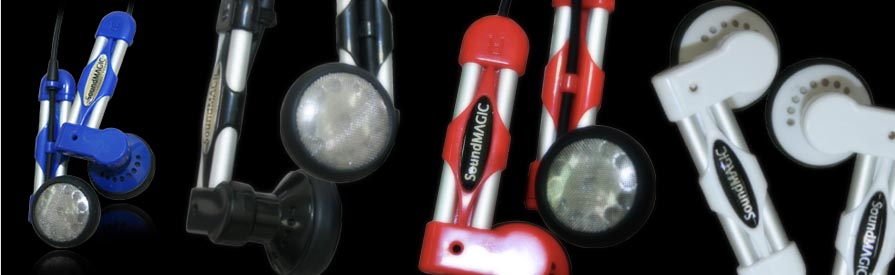

SoundMAGIC Earplug PH10


Overview

  • Model No.: PH10
  • Unit: 15 mm Neodymium Magnet
  • Sensitivity: 113±3 dB at 1 KHz/mW
  • Frequency range: 20~22000 Hz

Sizes

  • Cable length: 1.2 M
  • Connection: 3.5 mm
  • Weight: 16 g

Technical Specifications

Frequency range 20~22000 Hz
DC Resistance 16±10% Ohm
Sensitivity 113±3 dB at 1 KHz/mW

Features

  • U - tube design, perfect resonance with the speaker, expand the speakers own performance, sound field is broader, more sweet Intermediate Frequency.
  • Compatible with iPod/iPhone and other portable MP3 player devices.
  • Good balance, Precise reproduce, Unadulterated tone.
  • Broad sound field, Sweet Intermediate Frequency.

Accessory

  • Sponge
  • PU pouch
  • Warranty Card
  • Cable clamp

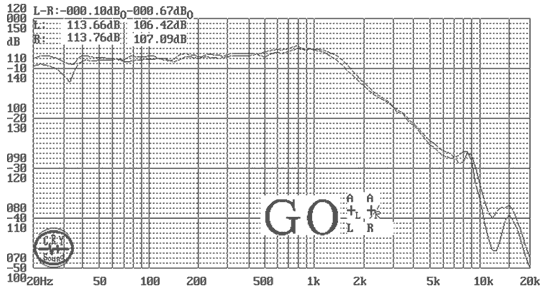

Frequency Response


Packaging

  • Carton: 100 x 100 x 60 mm

Colors

  • black, white




Joyacross LLP is the sole distributor of SoundMAGIC products in Singapore.
SoundMAGIC is Copyright 2007-2009 Shenzhen SoundMAGIC Technology Development Co., Ltd. All Rights Reservered.
Compliances
